Shape Layout
Use a shape layout to position children in a shape formation with a specified number of sides. The first child is placed in the center, and subsequent children are placed in concentric layers around the center, with each layer forming the desired shape.

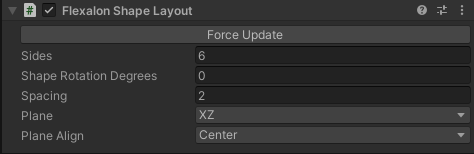

Shape Layout Options
| Sides | Determines how many sides the shape should have. |
| Shape Rotation Degrees | Rotates the shape around the specified Plane without rotating the children. |
| Spacing | Determines the space between each layer of the shape. |
| Plane | Determines on which plane to create the shape. |
| Plane Align | Determines how each child aligns within the size of the parent along the axis perpendicular to the Plane |
